| उत्पत्ति के प्लेस: | यूएसए |
| ब्रांड नाम: | GE |
| प्रमाणन: | CO |
| मॉडल संख्या: | IS220PRTDH1A |
| न्यूनतम आदेश मात्रा: | 1PC |
|---|---|
| मूल्य: | $3500 |
| पैकेजिंग विवरण: | 6.4" x 6.4" x 4.8" (16 सेमी x 16 सेमी x 12 सेमी) |
| प्रसव के समय: | 5-8 काम के दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 10pcs |
| ब्रांड नाम: | GE | नमूना: | IS220PRTDH1A |
|---|---|---|---|
| स्थिति: | नया | सकल वजन/शिपिंग वजन: | 2.2 एलबीएस / 35.2 औंस / 1 किग्रा |
| पैकिंग आकार: | 6.4" x 6.4" x 4.8" (16 सेमी x 16 सेमी x 12 सेमी) | उत्पत्ति देश/मूल देश: | संयुक्त राज्य अमेरिका |
| समय सीमा: | स्टॉक में | शिपिंग बंदरगाह: | ज़ियामेन |
| भुगतान: | टी/टी | बिक्री मूल्य: | जाँच करना |
| रंग: | सामग्री पर निर्भर करता है | गारंटी: | 12 महीने |
| समय सीमा: | 5-8 काम के दिन | कूरियर पार्टनर्स: | डीएचएल, यूपीएस, टीएनटी, फेडेक्स और ईएमएस |

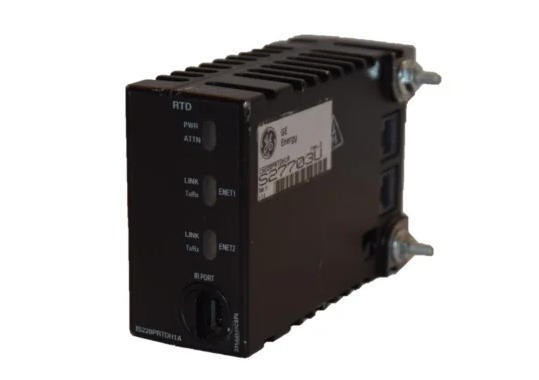

GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack
Product Details:
| Brand Name | GE |
| Model | IS220PRTDH1A |
| Catalog | Mark VI |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $3500 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| N/M | N/M |
Description:
The GE IS220PRTDH1A is a Resistance Temperature Device Input Module manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. An RTD input terminal board and one or more I/O Ethernet networks are connected electrically by the Resistance Temperature Device (RTD) Input (PRTD) pack.
An acquisition board dedicated to the thermocouple input function is included in the pack, along with a processor board that is shared by all Mark VIe distributed I/O packs. Up to eight RTD inputs can be supported by the I/O pack, while the TRTD terminal boards can support up to sixteen RTD inputs. A DC-37 pin connector that links directly to the terminal board connector for the pack, as well as a three-pin power input, are used for input. There are two RJ45 Ethernet connectors for the output. Indicator LEDs are used to display visual diagnostics.
